Maximum power and endurance



DELIVERY TIME IS MARCH -APRIL 2024



After you place your order please let us know via email what mast adaptor you need.

You can choose from the list below

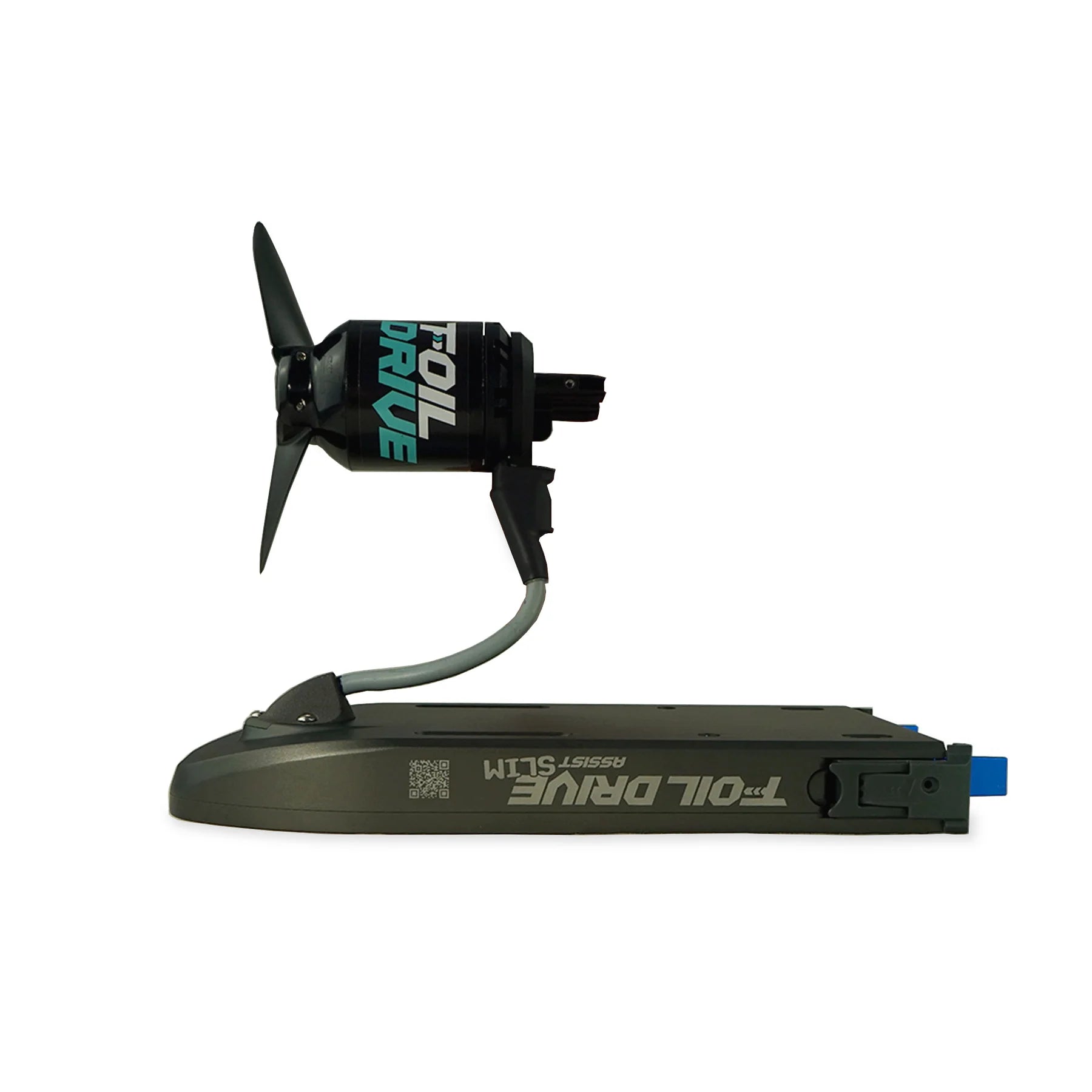

The Foil Drive Gen 2 Assist Slim stands as the pinnacle of the range, epitomizing the best in hybrid electric assist foiling. True to its name, the Assist Slim delivers unparalleled thrust, extended run time, and supreme versatility, making it a top-tier choice for avid foilers.

This comprehensive kit equips you with everything necessary to transform your current foil and board into a high-performance electric-assisted foiling craft.


How i order the the Foil Drive GEN 2?

Send an email to info@wakestyle.eu with the following details:

  • Battery type: Slim power or Endurance
  • Motor with the required cable length: 15 cm- 20 cm - 25 cm - 60 cm - 70 cm
  • Foil Drive Mast adaptor : Choose from the list below
  • We will contact you back and tell you what is available and what not.
  • Pre-orders are free and it is possible to cancel until confirmation. Confirmation will take place 1 month before shipment and a deposit is required. 1 week before the shipment a full deposit is required.
  • Warranty cases will be handled directly by us and spare parts will ship from within Europe.

Contact us for more info



Customization options include:

- The Agile slim Battery
- The advanced Gen2 Motor
- A Mast Adaptor tailored to fit your chosen foil mast.

For those interested in a seamless integration of mast and Assist Slim, consider these specialized combinations:

- Assist Slim x Project Cedrus Integrated Mast
- Assist Slim x AXIS Integrated Mast

Ideal for a variety of users, especially those needing extra power for larger riders or smaller boards and foils, the Assist MAX excels in offering prolonged foiling sessions and unmatched adaptability in how you choose to foil. Whether it's surfing, winging, downwinding, wake foiling, or gliding over flat water, the Assist MAX is equipped to handle it all with ease.



Specs:

  • Max Thrust: 27.5kg (60.6lbs)
  • Weight Range: 3.4-4.5kg (7.4-9.9lbs)
  • Dimensions with Long A Nose Cone: L525 x W25 x H50mm
  • Dimensions with Short B Nose Cone: L415 x W25 xH50mm
  • App compatibility: Foil Drive app, Android and IOS

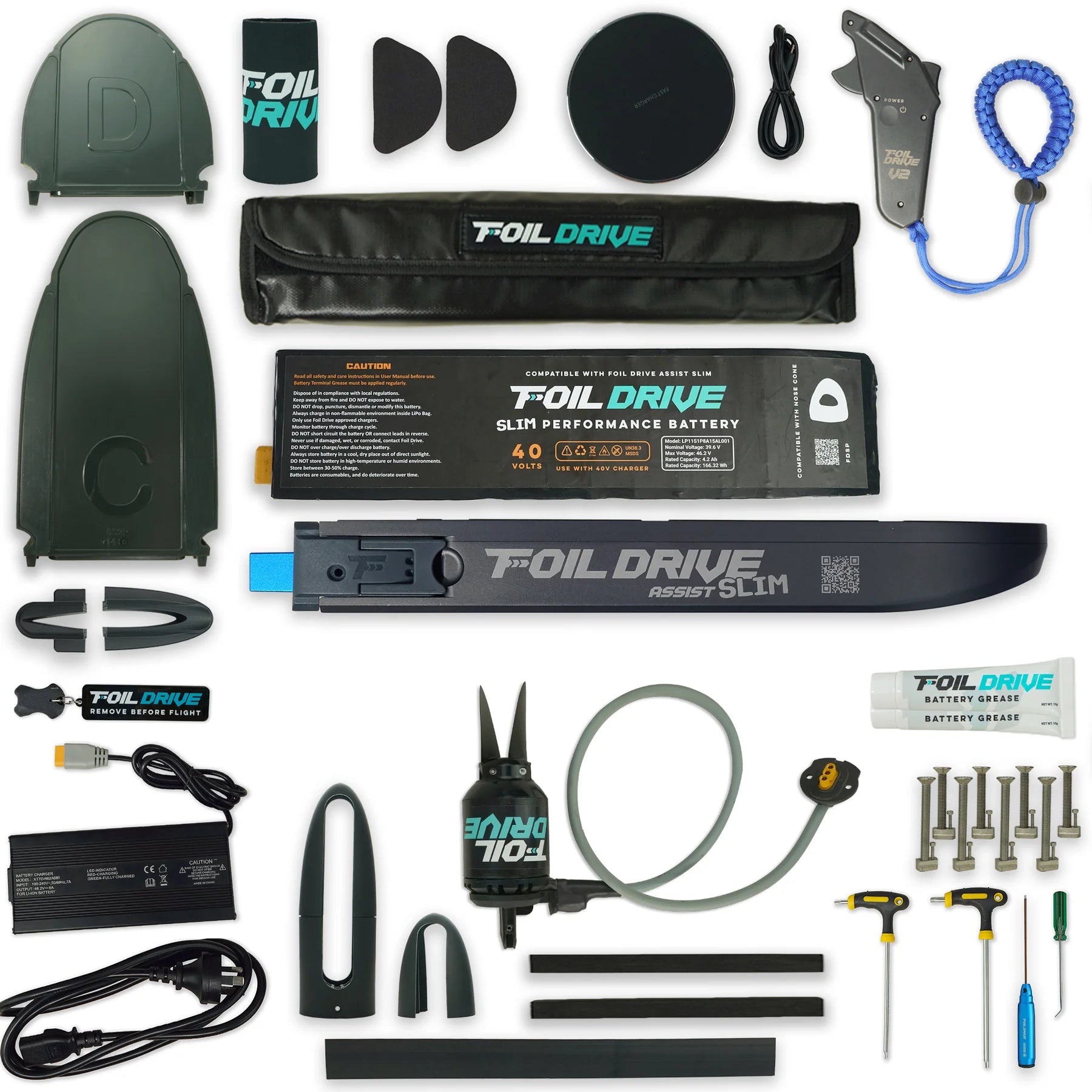

What is included:

Choice of Battery with Lipo Bag*

*Choice of Gen2 Motor with 2 Blade Propeller/Hub and Stubbie Cooler*
*Choice of Mast Adaptor*

Foil Drive Assist Slim Electronics Box
Motor Plug Protector with Keychain
Foil Drive Nose Cone A
Foil Drive Nose Cone B
Foil Drive Universal Motor Pod - Rear
Foil Drive Universal Motor Pod - Short Nose
Foil Drive Universal Motor Pod - Long Nose
Foil Drive v2 Wireless Throttle Controller
Foil Drive Controller Wrist Strap
Foil Drive Mast Cable Guide 23cm
Foil Drive Controller Wireless Charge Pad
Micro USB Cable
40v Standard Foil Drive Charger 4amp
4x Mast Track Foam Inserts
2x Nose Cone Rocker Pad
2x Battery Grease
4x M8 Assist MAX Mast Plate Bolts 80mm
4x M6 Assist MAX Mast Plate Bolts 80mm
Foil Drive 2.5mm Driver
Torx T40 Tee Handle Driver
Torx T30 Tee Handle Driver
Foil Drive Cleaning Cloth
Foil Drive Gen2 Carry Case

Foil Drive Mounting Bolt Bag
- 4x M8 Locking Tee Nuts
- 4x M6 Locking Tee Nuts
- 4x M3 x 20mm Bolts for Locking Tee Nuts
- 2x M3 x 16mm Latch Locking Bolts

Foil Drive Motor and Pod Bolts Bag
- 4x Motor Pod Bolts (M3 x 12mm)
- 3x Puck Bolts (M3 x 12mm)
- 3x Motor Plug Bolts (M4 x 10mm)

Spare Parts Bag
- 2x O-Ring Seals - Foil Drive Assist MAX
- 2x Latch Assembly - Foil Drive Assist MAX
- 3x Motor Plug Bolts (M3 x 12mm)
- 4x Motor Pod Bolts/Puck Bolts (M3 x 12mm)
- 2x Latch Locking Bolts (M3 x 16mm)
- 2x Propeller Bolts (M3 x 30mm)
- 2x Latch Pivot Bolts (M3 x 45mm)



Contact the shop wake-style.com for info

Motor + Cable length
